Description
The 3D crystal laser subsurface engraving machine, usually also be called as 3D Laser machine, Crystal laser machine, 3D crystal Engraver, which is a special kind laser machine used for make 2d or 3d laser images or 2d images into crystals, this kind unique and attractive crystal gifts, the engraved image will not get fade forever, so, it’s a new and great business in most countries of world.
We, Crystal 3D Laser Tech, which is a professional manufacturer, have only focused on 3d crystal laser engraving machines for more than 15 years. We offer a full range of crystal laser gifts for your business. If you want to open this shop, contact us now

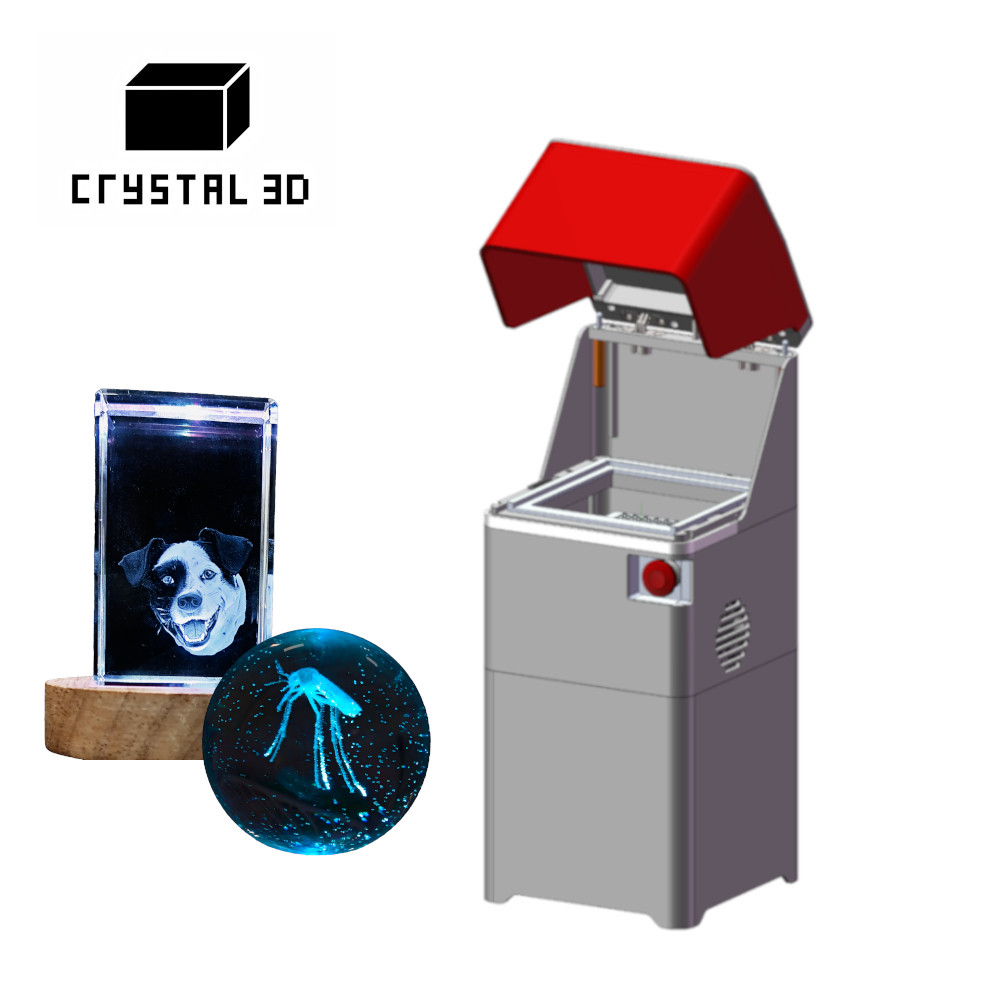

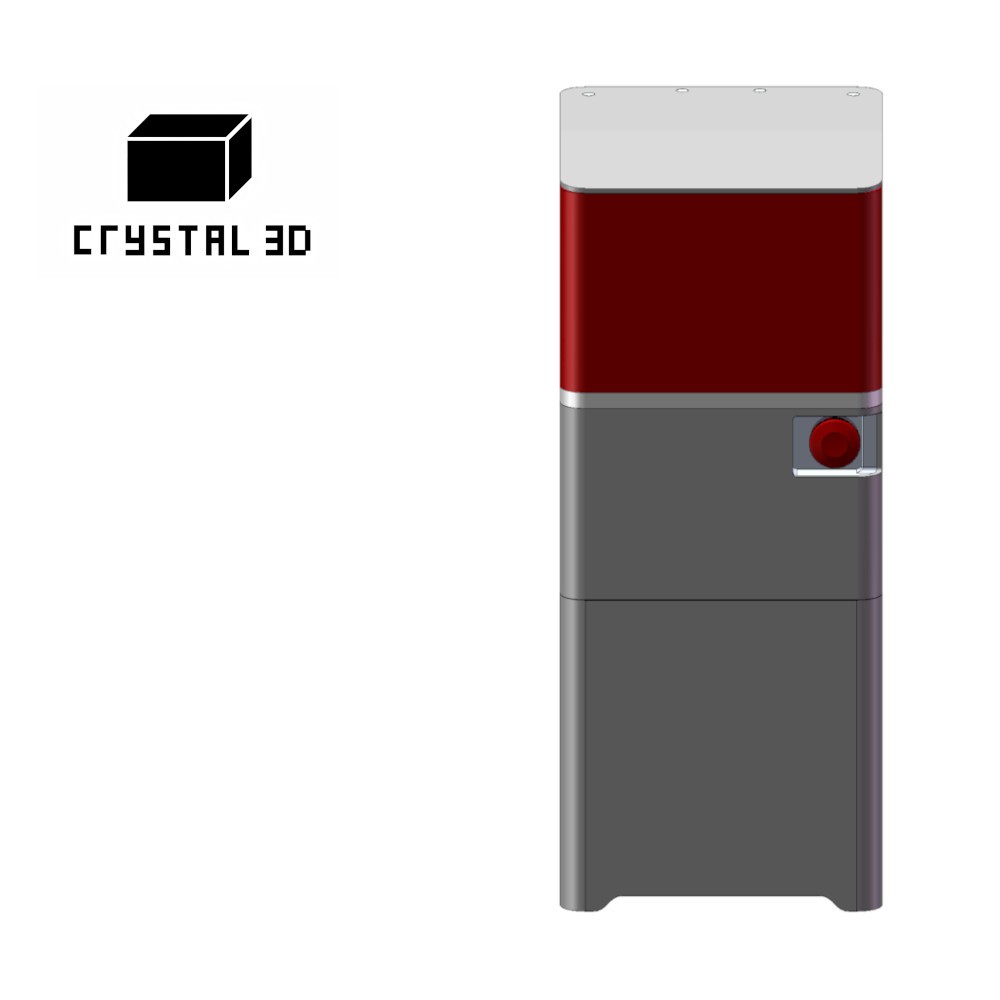

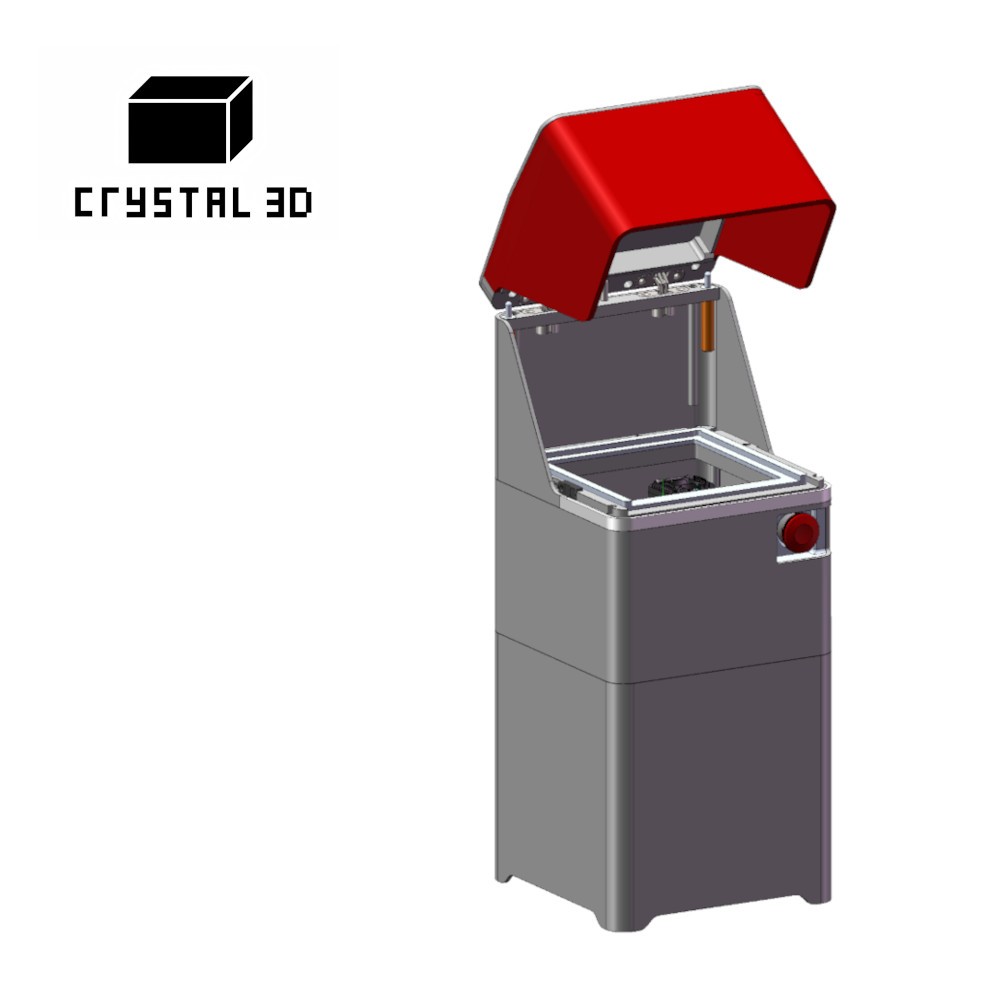

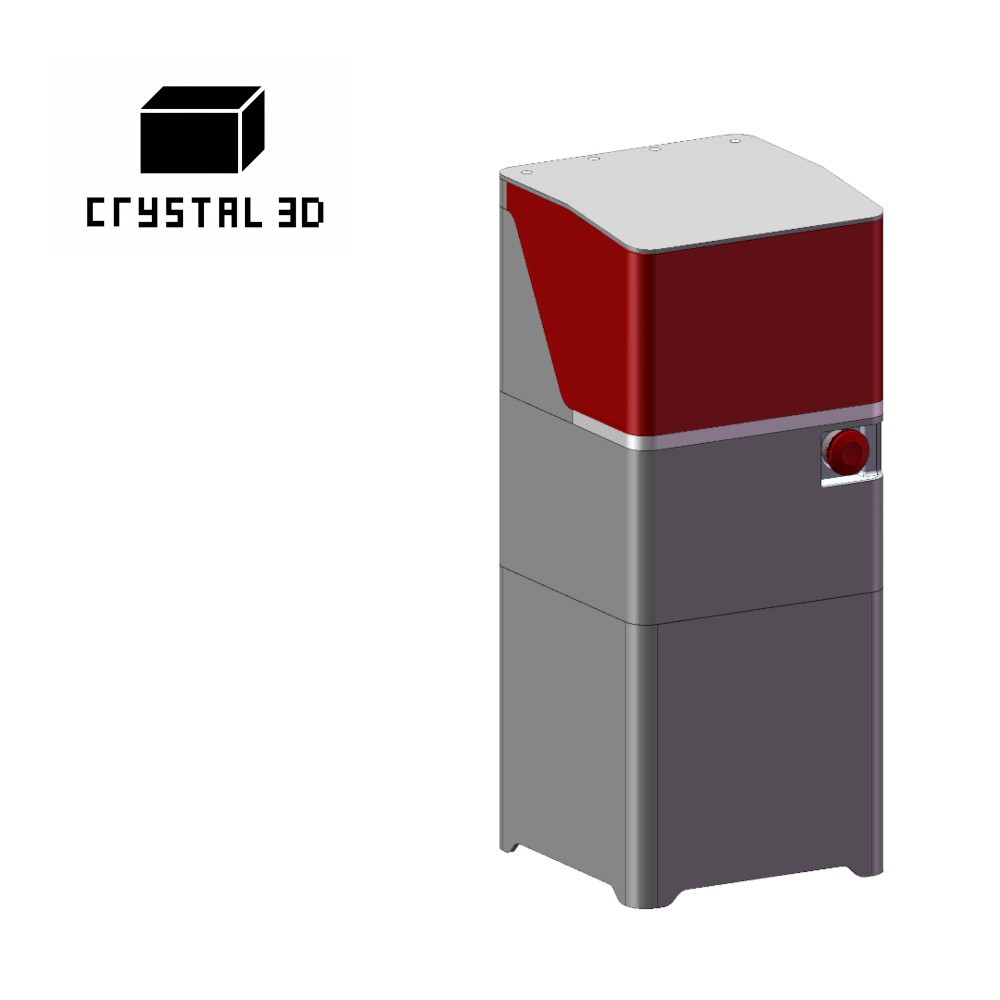

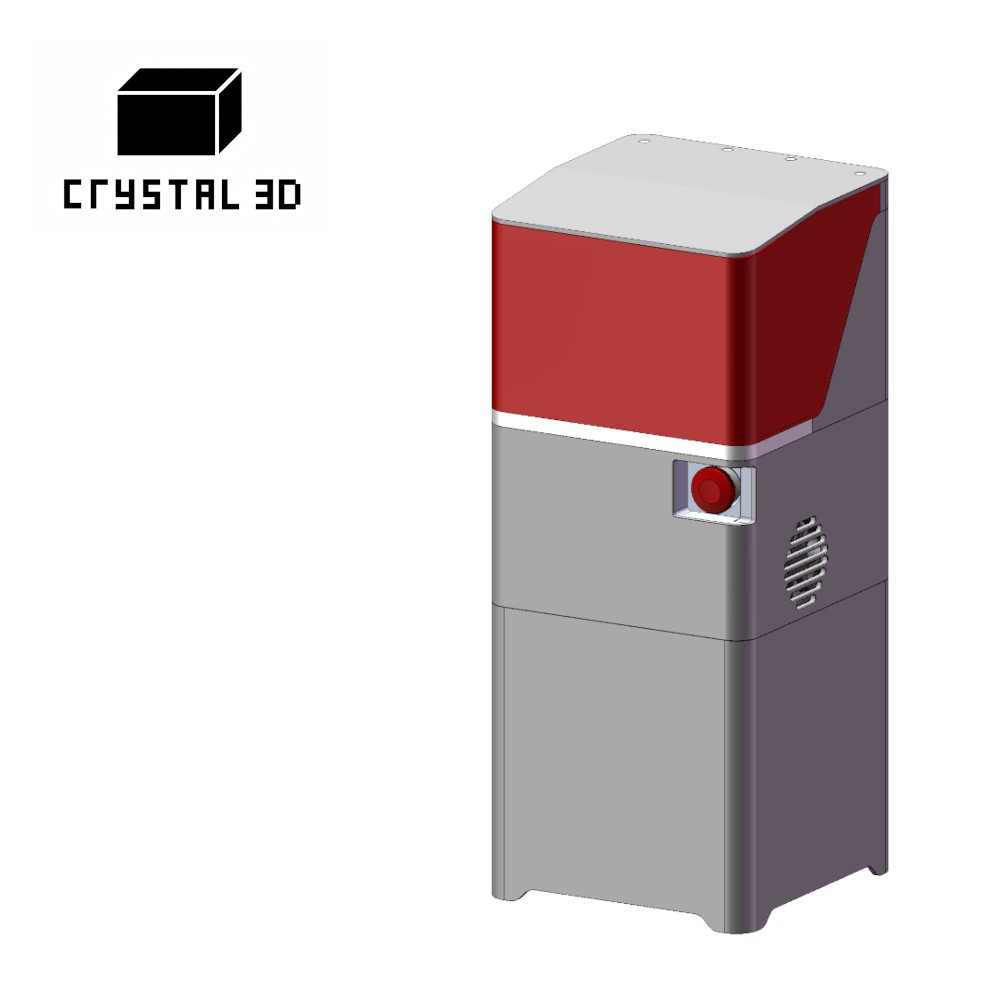

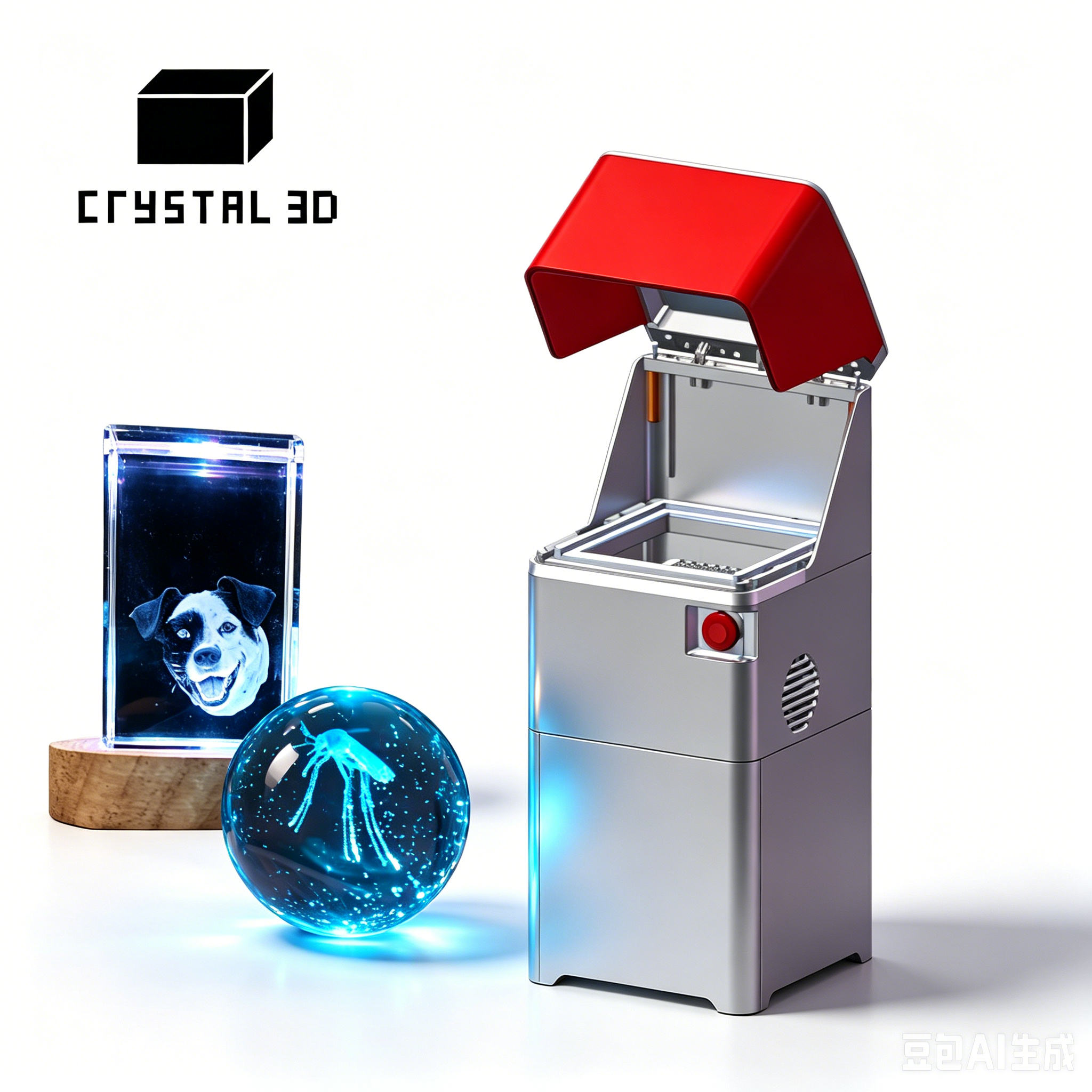

Advance Amazing Machine Mini is a portable, designed model crystal laser engraving machine, which is specially designed for high-level business. Special for a business store.
With compact machine design, Advance Amazing Machine Mini is the most practical and cost-effective model, suitable for personalized 2d/3d crystal gifts business in shopping malls, airports, tourist attractions, etc..
Adopting the highly integrated and high-peak power laser developed by Crystal 3D Laser, the machine can engrave at high speed, which ensures consumers get the customized crystal products in just a few minutes. The specially designed air cooling system can ensure the machine’s continuous working time longer than 24 hours, while keeping the high stability of processing.
Versatile Crystal Processing
Supports both ball and cube crystal engraving, giving you the flexibility to create a wide variety of customized crystal products.
Suitable for Multiple Crystal Sizes
Easily handles both small and large crystals, allowing you to produce everything from compact souvenirs to premium display pieces.
High-Precision 3D Engraving
Delivers sharp, detailed, and professional 3D crystal designs with outstanding accuracy and image quality.
Portable Design — Perfect for Start-Up Businesses
Compact and easy to operate, making it an ideal choice for entrepreneurs looking to start a profitable 3D crystal business.
With 20 years professional manufacture experience on 3D Crystal crystal laser machines, our company former name is Wuhan Syntony laser(STN Laser), different from other crystal laser machine suppliers in china market, such as the Holy laser, Aol Laser, Perfect laser, or any others, our company is the unique manufacture which only focus on one kind machine--3D crystal laser machine, only focus this small area for more than 20 years, we have own special advantages from others, detail as below:
A. Own made laser box, we use the USA imported Diode pump, and Isreal YAG, and Europe Q switch, designed the own special laser box, which make high power 532 laser beam, our laser pulse width can reach 6ns, which is smallest in China market, this can ensure the high strong laser power; We company is the unique company have the own technology of the green laser box, other factory are bought whole laser box from other chinese factory, so if any questions, we can offer faster feedback for any problem.
B. Own-designed with own patent Air cooling system, to make sure the laser works at high efficiency, the temperature control for the optical spare parts is very important, we designed our own air cooling system to control it, and make the laser machine can continuous works long time.
C. Use special, good-quality material, pay attention to any details of the machine
D. Full ranges machines, and have OEM ability for any size machines you have
In our company, we have different-sized machines suitable for different shop places. Malls require a small-sized machine, factories need a bigger, tell us your request, and you can get the best suitable for your business.
E. Special lightweight design machine.
All our machines are designed in a small size and suitable for engraving sizes for business. Our machines' net weight is only 25 kgs to 100 kgs, compared to the 190 kgs machines from other suppliers; we are more convenient in design.
Besides the machinery, if you are new to the crystal 3d business, we can also supply the blank crystal and the 2D to 3D conversion service.

|
Model |
Advance Amazing Machine Mini |
|
Crystal size |
Cube: 120*120*100mm; Ball: 150mm |
|
Engraving area for image |
A circle with a diameter of 120mm (single scan area) |
|
Software |
dots building software and the laser software (come with the machine) |
|
Laser Box Power |
Small and high precision laser source box, give very small dots |
|
Optimal laser frequency |
3000Hz (suggested frequency settings which can give better engraving effect.) |
|
Maximum laser frequency |
More than 5000Hz |
|
Engraving Speed |
Maximum:5000 points/s; 280000dots per minute |
|
Diameter of a point |
10-20μm |
|
Repeated location accuracy |
<10μm |
|
Cooling |
Air Cooling |
|
Protective glass |
Professional-grade protective glass |
|
Application |
Keychain, Portrait cubes,medals |
|
Computer |
No desk computer, use USB port can connect with the desk computer and the laptop |
|
Computer operating system |
Windows |
|
Weight |
The whole machine is 23kgs |
|
Machine size |
200x200x476mm |
|
Packing size |
485mm*455mm*620mm, metal flight box packaging |
|
Continuous work time |
More than 5 days x 24hours (tested on every machine) |
|
Electrical connection |
Single 220V or 120V (+/-10%); 50Hz or 60Hz |
|
Warranty |
1 Year for whole machine |
