Home Products 3D Laser Box 3D Laser Box Drone

3D Laser Box Drone

3d crystal machine  , 3d laser subsurface engraving machine  , crystal engraver
Inquiry Send Email

Description

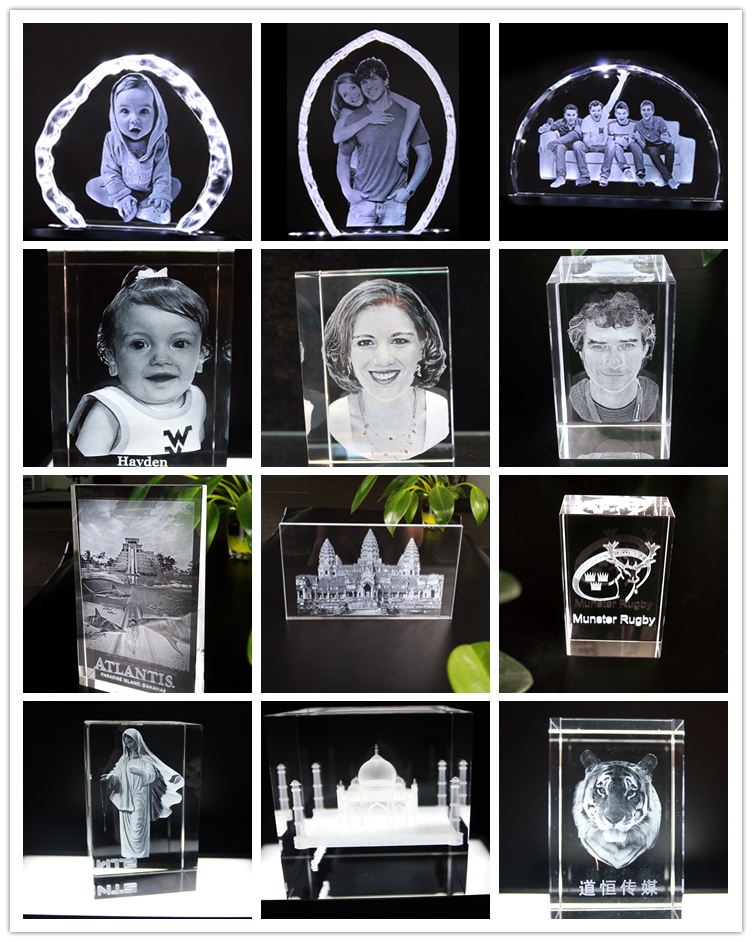

The 3D crystal laser subsurface engraving machine, usually also be called as 3D Laser machine, Crystal laser machine, 3D crystal Engraver, which is a special kind laser machine used for make 2d or 3d laser images or 2d images into crystals, this kind unique and attractive crystal gifts, the engraved image will not get fade forever, so, it’s a new and great business in most countries of world.

We Crystal 3D Laser Tech, which is a professional manufacture only focus on 3d crystal laser engraving machines for more than 15 years,we offer full range crystal laser gifts for your business, if you want open this shop, contact us now


3D LASER BOX Drone is the updated model for 3D Laser Box 3.0, which is our special new designed model with work with powered software from Cockpit 3d to make you can auto production for the orders, the max no tilling area 200x200mm is the best solution for nice 3d crystal solution in world, a super fast laser machine with our latest diode pumped laser component, which is imported from USA, and this 3d crystal laser engraving machine is especially designed for who want to make 2d or 3d laser gifts for business. It is our big scale crystal laser engraving machine, it is an ideal type model for 2D/3D subsurface crystal engraving business, not only suitable for the production of crystal gifts and crafts, but also for the production of crystal trophies and awards in different shapes and sizes.

The highly integrated and high-peak power laser developed by ourselves ensure the high speed of engraving, the CE standard design ensures the safety of processing, and the special own-designed air cooling system can ensure the machine’s continuous working time longer than 24 hours, at the same time keeping the high stability of the machine..



With 16 years professional manufacture experience on 3D Crystal crystal laser machines, our company former name is Wuhan Syntony laser(STN Laser), different from other crystal laser machine suppliers in china market, such as the Holy laser, Aol Laser, Perfect laser, or any others, our company is the unique manufacture which only focus on one kind machine--3D crystal laser machine, only focus this small area for more than 16 years, we have own special advantages from others, detail as below:


A. Own made laser box, we use the USA imported Diode pump, and Isreal YAG, and Europe Q switch, designed the own special laser box, which make high power 532 laser beam, our laser pulse width can reach 6ns, which is smallest in China market, this can ensure the high strong laser power; We company is the unique company have the own technology of the green laser box, other factory are bought whole laser box from other chinese factory, so if any questions, we can offer faster feedback for any problem.


B. Own designed with own patent Air cooling system, to make sure the laser works at the high efficiency, the temperature control for the optical spare parts is very important,we designed own air cooling system to control it, and make the laser machine can continuous works long time.


C. Use special good quality material, pay attention to any details of the machine


D. Full ranges machines, and have OEM ability of any sizes machines you have

In our company, we have different sizes machines suitable for different shop places, mall require small size machine, factory need bigger, tell us your request, you can get the best suitable for your business.


E. Special light weight design machine.

All our machines are designed in small size and suitable engraving sizes for business, our machines net weight is only 45 kgs to 100 kgs, compare to the 190 kgs machines from other supplier, we are more convenient design.








Model 3D Laser Box Drone
Laser Medium: Nd:YAG crystal Diode Pumped  532nm
Laser Frequency: 4000Hz
Engraving Speed 180000-220000 dots/min
Engraving Area (mm): 400*300*150
Dot Diameter: 20-40μm
Resolution: 800-1200 DPI
Motion Control : 1 Galvo+X,Y,Z
Repeated location accuracy: <10μm
Continuous Working Time: >24 hours
Cooling: Air cooling
Lifetime of laser Diode: >20000 hours
Power Consumption: < 1000W
Power Supply Connection: Single Phase 220V or 110V (+/-10%), 50Hz or 60Hz
Sound Level: 50db
Warranty of Quality: 2 years on whole machine
Computer: CPU: Dual-Core 3G or similar, 4GB RAM,500GB hard disk
Acceptable File Format: JPG, BMP, DXF etc. The other file formats can be converted to
acceptable file formats by PhotoShop, AutoCAD, 3DMAX etc.
Circumstance Temperature: 5-35℃
Relative Humidity: <70%
Weight: 200kg
Dimension (L*W*H): 860(L)*730(W)*1030(H)mm
